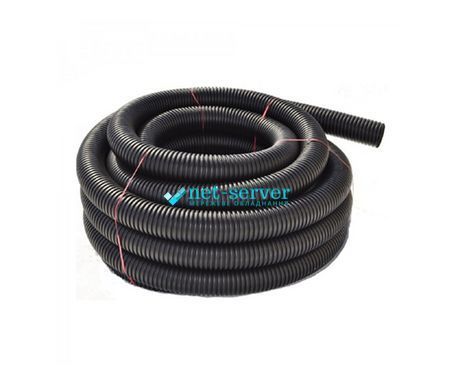

KOPOS Corrugated Conduit Ø32 mm with Pull Wire, PVC, UV-Resistant, Black, 50 m, 1432_F50D

KOPOS 1432_F50D corrugated electrical conduit Ø32 mm is designed for the protection and routing of power, telecommunication, network, signal and other low-voltage cables. It is made of durable PVC in black and features UV resistance, making it suitable for cable routes exposed to sunlight.

The conduit has an outer diameter of 32 mm and an inner diameter of 24.3 mm, making it suitable for routing larger-diameter cables or several cable lines, depending on installation requirements.

The integrated pull wire simplifies cable insertion into the conduit and significantly reduces installation time. Its flexible construction allows cable routes to be formed conveniently around bends and through complex installation areas.

The conduit is suitable for both surface-mounted and concealed installations: on surfaces, in screed, under plaster, inside hollow and plastered walls, as well as in ceiling structures.

Mechanical resistance of 320 N/5 cm provides additional protection for installed cables against mechanical loads during installation and subsequent operation.

Key Advantages

• UV-resistant design — improved resistance to ultraviolet radiation.

• Pull wire included — makes cable routing easier and faster.

• Made of durable PVC.

• Outer diameter: 32 mm.

• Inner diameter: 24.3 mm.

• Mechanical resistance: 320 N/5 cm.

• Suitable for surface-mounted and concealed installations.

• Can be installed in screed, under plaster, in walls and ceilings.

• Operating temperature — -5 to +60 °C.

• Coil length — 50 m.

• Manufacturer — KOPOS.

Technical Specifications

• Type: corrugated electrical conduit with pull wire

• Manufacturer: KOPOS

• Model: 1432_F50D

• Material: PVC

• Colour: black

• UV resistance: yes

• Outer diameter: 32 mm

• Inner diameter: 24.3 mm

• Length: 50 m

• Length tolerance: ±1%

• Weight: 0.11 kg/m

• Mechanical resistance: 320 N/5 cm

• Operating temperature: -5 to +60 °C

• Reaction to fire of the base material: A1–F

• Classification code: 22212

• Standard: ČSN EN 61386-1 ed.2

• Packaging: supplied with pull wire

Applications

The KOPOS 1432_F50D corrugated conduit can be used for the protection and routing of:

• power cables;

• lighting cables;

• network and twisted-pair cables;

• telecommunication lines;

• CCTV system cables;

• alarm and security system cables;

• automation and control cables;

• other electrical and low-voltage cable systems.

The conduit is suitable for installation on surfaces, in screed, under plaster, inside hollow and plastered walls, as well as in ceiling structures.

Installation in Hazardous Areas

The conduit may be installed in Zone 2 areas with a risk of explosion caused by combustible gases and vapours, as well as in Zone 22 areas with a risk of combustible dust explosions, provided that applicable project requirements and installation regulations are followed.

Installation Recommendations

The manufacturer recommends installing plastic conduits at ambient temperatures above 0 °C.

KOPOS 1432_F50D Ø32/24.3 mm corrugated conduit with pull wire, 50 m is a practical solution for creating protected cable routes in residential, commercial, office and industrial installations. Its UV-resistant design, flexible construction, mechanical resistance and integrated pull wire provide convenient installation and reliable cable protection.
