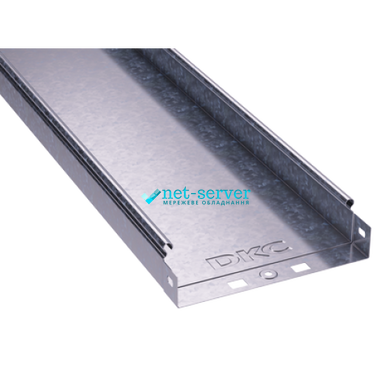

DKC Non-Perforated Cable Tray 50×600×3000 mm

The DKC non-perforated cable tray 50×600×3000 mm is designed for the organized, protected, and safe routing of a large number of power, data, telecommunications, control, and low-voltage cables. Its solid, non-perforated construction provides continuous cable support along the entire route, protects wiring from dust, dirt, and mechanical damage, and helps create a reliable and durable cable management system.

The tray is 50 mm high and 600 mm wide, making it suitable for routing a large number of cables and for building high-capacity main cable routes. The section length is 3000 mm, or 3 metres, which reduces the number of joints, speeds up installation, and improves the overall reliability of the cable route.

Sendzimir Galvanized Coating

The cable tray is manufactured from steel with a protective zinc coating applied using the Sendzimir galvanizing process. This coating effectively protects the metal from corrosion, extends the service life of the product, and helps maintain its operating properties over a long period.

The tray is recommended for indoor use in dry premises with normal humidity levels, including office centres, retail complexes, industrial facilities, warehouses, server rooms, data centres, technical rooms, and other commercial or industrial properties.

Advantages of the DKC Non-Perforated Cable Tray

• solid bottom for continuous and even cable support;
• protection against dust, dirt, and mechanical damage;
• 600 mm width for routing a large number of cables;
• 3000 mm, or 3 m, section length;
• fewer joints on long cable routes;
• corrosion-resistant Sendzimir galvanized coating;
• compatible with covers, brackets, connectors, and other mounting accessories;
• can be installed on walls, ceilings, or metal support structures;
• allows future modernization and expansion of the cable infrastructure without rebuilding the entire system.

Applications

The DKC 50×600 mm cable tray is used to create high-capacity cable management systems in a wide range of facilities:

• administrative and office buildings;
• retail and business centres;
• warehouses and logistics complexes;
• industrial facilities;
• server rooms and data centres;
• energy facilities;
• power distribution and lighting systems;
• data networks, automation, alarm, and CCTV systems.

Main Specifications

• Type: non-perforated cable tray;
• Brand: DKC;
• Height: 50 mm;
• Width: 600 mm;
• Length: 3000 mm;
• Section length: 3 m;
• Material: galvanized steel;
• Finish: Sendzimir galvanized;
• Construction: solid bottom, non-perforated;
• Purpose: installation, organization, and protection of cable routes.

Installation Features

The tray is installed using compatible brackets, supports, hangers, connector plates, and other mounting components of the appropriate size. A matching cover can be added to provide additional protection for the cable route.

Before installation, it is recommended to determine the total load, the number of cables, the mounting method, and the required spacing between supports. Properly selected compatible components ensure durability, safe operation, and convenient future maintenance of the system.

Frequently Asked Questions

What types of cables can be installed in the DKC 50×600 mm tray?

The tray is designed for routing a large number of power, data, telecommunications, control, and low-voltage cables. Its 600 mm width makes it suitable for high-capacity main cable routes.

What do the dimensions 50×600×3000 mm mean?

The tray is 50 mm high, 600 mm wide, and 3000 mm, or 3 metres, long. This size is intended for spacious, high-capacity cable management systems.

What is the difference between a non-perforated and a perforated cable tray?

A non-perforated cable tray has a solid bottom that provides continuous cable support and improved protection against dust, dirt, and mechanical impact. Perforated models have openings that improve ventilation and simplify installation.

What are the advantages of the 600 mm width?

The 600 mm width allows large cable bundles to be routed, makes it easier to separate cables by function, and provides substantial reserve capacity for future expansion of engineering networks.

What are the advantages of the 3-metre length?

A 3-metre section reduces the number of joints on long straight cable runs. This simplifies installation, reduces the number of connecting components required, and helps create a cleaner cable management system.

What is Sendzimir galvanizing?

Sendzimir galvanizing is a manufacturing process in which a protective zinc coating is applied to steel sheet. The coating improves corrosion resistance and extends the service life of the cable tray.

Can the tray be installed on a wall or ceiling?

Yes. The tray can be mounted on a wall, below a ceiling, or on metal support structures using suitable brackets, supports, hangers, and mounting hardware.

Is a cover required for the cable tray?

A cover is not always required, but it provides additional protection against dust, dirt, accidental contact, and mechanical impact. The need for a cover depends on the installation location and operating conditions.

Are mounting accessories included?

Covers, brackets, supports, hangers, connectors, and other mounting accessories are usually supplied separately and selected according to the cable route configuration.

How do I calculate the required number of cable trays?

To estimate the required quantity, divide the total cable route length by 3 metres and allow additional material for bends, cutting, branches, and installation requirements.

The DKC non-perforated cable tray 50×600×3000 mm with Sendzimir galvanized finish is a professional solution for creating spacious, durable, and reliable cable management systems in industrial, commercial, and infrastructure facilities.
