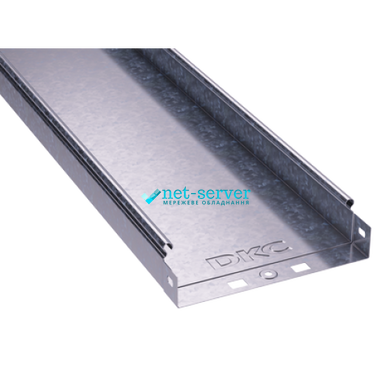

DKC Non-Perforated Cable Tray 80×500×3000 mm

The DKC non-perforated cable tray 80×500×3000 mm is designed for the organized, protected, and safe routing of a large number of power, data, telecommunications, control, and low-voltage cables. Its solid, non-perforated construction provides continuous support along the entire cable route, helps protect wiring from dust, dirt, and mechanical damage, and supports the creation of a reliable, durable, and professional cable management system.

The tray is 80 mm high and 500 mm wide, making it an ideal solution for main cable routes, industrial facilities, data centres, energy complexes, and engineering networks with a very high cable density. The section length is 3000 mm, or 3 metres, which helps minimize the number of joints, speeds up installation, and improves the overall reliability of the cable system.

Sendzimir Galvanized Coating

The cable tray is manufactured from steel with a protective zinc coating applied using the Sendzimir galvanizing process. This coating provides effective corrosion protection, extends the service life of the product, and helps maintain stable operating characteristics even during long-term use.

The tray is recommended for indoor installation in dry premises with normal humidity levels, including office centres, industrial facilities, warehouses, logistics complexes, server rooms, data centres, electrical rooms, technical areas, and other commercial and industrial properties.

Advantages of the DKC Non-Perforated Cable Tray

• solid bottom for continuous cable support;
• protection against dust, dirt, and mechanical damage;
• 500 mm width for extra-high-capacity cable routes;
• 80 mm height for increased internal capacity;
• 3000 mm, or 3 m, section length;
• minimal number of joints on long cable routes;
• corrosion-resistant Sendzimir galvanized coating;
• compatible with covers, brackets, connectors, and DKC mounting accessories;
• can be installed on walls, ceilings, or metal support structures.

Applications

The DKC 80×500 mm cable tray is suitable for creating professional cable management systems in a wide range of facilities:

• office and administrative buildings;
• retail and business centres;
• warehouses and logistics complexes;
• industrial facilities;
• server rooms and data centres;
• energy facilities;
• power distribution and lighting systems;
• data networks, automation, alarm, and CCTV systems.

Main Specifications

• Type: non-perforated cable tray;
• Brand: DKC;
• Height: 80 mm;
• Width: 500 mm;
• Length: 3000 mm;
• Section length: 3 m;
• Material: galvanized steel;
• Finish: Sendzimir galvanized;
• Construction: solid bottom, non-perforated;
• Purpose: installation, organization, and protection of cable routes.

Installation Features

The tray is installed using compatible brackets, supports, hangers, connector plates, and other mounting components of the appropriate size. For additional cable protection, it is recommended to use a compatible DKC cover.

Before installation, it is recommended to determine the total load, the number of cables, the mounting method, and the spacing between supports. Properly selected DKC components ensure durability, safe operation, and convenient maintenance of the cable management system.

Frequently Asked Questions

What types of cables can be installed in the DKC 80×500 mm tray?

The tray is suitable for routing power, data, telecommunications, control, and low-voltage cables. Its 500 mm width makes it suitable for extra-high-capacity main cable routes.

What do the dimensions 80×500×3000 mm mean?

The tray is 80 mm high, 500 mm wide, and 3000 mm, or 3 metres, long. This size is widely used for professional large-scale cable management installations.

What is the difference between a non-perforated and a perforated cable tray?

A non-perforated cable tray has a solid bottom that provides continuous cable support and improved protection against dust, dirt, and mechanical impact. Perforated models have openings that improve ventilation and simplify installation.

What are the advantages of the 500 mm width?

The 500 mm width allows very large cable bundles to be installed, makes it easier to separate power and data lines, and provides substantial reserve capacity for future expansion of engineering networks.

What are the advantages of the 80 mm height?

The 80 mm height increases the usable internal capacity of the tray, accommodates larger-diameter cables, and makes it easier to create spacious main cable routes.

What is Sendzimir galvanizing?

Sendzimir galvanizing is a manufacturing process in which a protective zinc layer is applied to steel sheet. The coating improves corrosion resistance and significantly extends the service life of the product.

Can the tray be installed on a wall or ceiling?

Yes. The tray can be mounted on a wall, below a ceiling, or on metal support structures using suitable brackets, supports, hangers, and mounting hardware.

Is a cover required for the cable tray?

A cover is not always required, but it provides additional protection against dust, dirt, accidental contact, and mechanical impact. The need for a cover depends on the installation location and operating conditions.

Are mounting accessories included?

Covers, brackets, supports, hangers, connectors, and other mounting accessories are usually supplied separately and selected according to the cable route configuration.

How do I calculate the required number of cable trays?

To estimate the required quantity, divide the total cable route length by 3 metres and allow additional material for bends, cutting, branches, and installation requirements.

The DKC non-perforated cable tray 80×500×3000 mm with Sendzimir galvanized finish is a professional solution for creating reliable, durable, and easy-to-maintain cable management systems in commercial, industrial, and infrastructure facilities.
