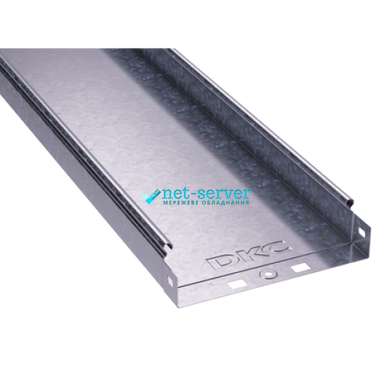

DKC Non-Perforated Cable Tray 80×80×3000 mm

The DKC non-perforated cable tray 80×80×3000 mm is designed for the organized, protected, and safe routing of power, data, telecommunications, control, and low-voltage cables. Its solid, non-perforated construction provides continuous support along the entire cable route, helps protect wiring from dust, dirt, and mechanical damage, and contributes to a durable cable management system.

The tray is 80 mm high and 80 mm wide, making it a practical solution for medium-capacity cable routes. The section length is 3000 mm, or 3 metres, which reduces the number of joints, speeds up installation, and improves the overall reliability of the cable route.

Sendzimir Galvanized Coating

The cable tray is manufactured from steel with a protective zinc coating applied using the Sendzimir galvanizing process. This coating provides effective corrosion protection, extends the service life of the product, and helps maintain stable operating characteristics over time.

The tray is recommended for indoor use in dry premises with normal humidity levels, including offices, business centres, retail facilities, industrial sites, warehouses, server rooms, data centres, and technical areas.

Advantages of the DKC Non-Perforated Cable Tray

• solid bottom for reliable and continuous cable support;
• protection against dust, dirt, and mechanical damage;
• practical 80×80 mm dimensions;
• 3000 mm, or 3 m, section length;
• fewer joints on long cable routes;
• corrosion-resistant Sendzimir galvanized coating;
• compatible with covers, brackets, connectors, and mounting accessories;
• can be installed on walls, ceilings, or metal support structures;
• easy maintenance and the possibility of future cable system expansion.

Applications

The DKC 80×80 mm cable tray is used to create cable management systems in a wide range of facilities:

• office and administrative buildings;
• retail and business centres;
• warehouses and logistics complexes;
• industrial facilities;
• server rooms and data centres;
• power distribution and lighting systems;
• data networks;
• automation, alarm, and CCTV systems.

Main Specifications

• Type: non-perforated cable tray;
• Brand: DKC;
• Height: 80 mm;
• Width: 80 mm;
• Length: 3000 mm;
• Section length: 3 m;
• Material: galvanized steel;
• Finish: Sendzimir galvanized;
• Construction: solid bottom, non-perforated;
• Purpose: installation, organization, and protection of cable routes.

Installation Features

The tray is installed using compatible brackets, supports, hangers, connector plates, and other mounting components of the appropriate size. If required, the cable route can be fitted with a compatible cover for additional cable protection.

Before installation, it is recommended to determine the total load, the number of cables, the mounting method, and the spacing between supports. Properly selected components ensure durability, safe operation, and convenient maintenance of the cable management system.

Frequently Asked Questions

What types of cables can be installed in the DKC 80×80 mm tray?

The tray is suitable for routing power, data, telecommunications, control, and low-voltage cables. It is well suited for medium-capacity cable routes.

What do the dimensions 80×80×3000 mm mean?

The tray is 80 mm high, 80 mm wide, and 3000 mm, or 3 metres, long. This size provides sufficient internal space for a wide range of cable systems.

What is the difference between a non-perforated and a perforated cable tray?

A non-perforated cable tray has a solid bottom that provides continuous cable support and improved protection against dust, dirt, and mechanical impact. Perforated models have openings that improve ventilation and simplify installation.

What are the advantages of the 80 mm height?

The 80 mm height allows more cables or cables with a larger diameter to be installed than in 50 mm-high models. It also provides reserve capacity for future cable system expansion.

What are the advantages of the 3-metre length?

A 3-metre section reduces the number of joints on long straight cable runs. This simplifies installation and reduces the number of connecting components required.

What is Sendzimir galvanizing?

Sendzimir galvanizing is a manufacturing process in which a protective zinc coating is applied to steel sheet. The coating improves corrosion resistance and extends the service life of the cable tray.

Can the tray be installed on a wall or ceiling?

Yes. The tray can be mounted on a wall, below a ceiling, or on metal support structures using suitable brackets, supports, hangers, and mounting hardware.

Is a cover required for the cable tray?

A cover is not always required, but it provides additional protection against dust, dirt, accidental contact, and mechanical impact. The need for a cover depends on the installation location and operating conditions.

Are mounting accessories included?

Covers, brackets, supports, hangers, connectors, and other mounting accessories are usually supplied separately and selected according to the cable route configuration.

How do I calculate the required number of cable trays?

To estimate the required quantity, divide the total cable route length by 3 metres and allow additional material for bends, cutting, branches, and installation requirements.

The DKC non-perforated cable tray 80×80×3000 mm with Sendzimir galvanized finish is a practical solution for creating reliable, durable, and easy-to-maintain cable management systems in commercial, industrial, and administrative buildings.
