Net-Server NS-KJ-HDMI20-WH HDMI 2.0 Keystone Coupler — Convenient Multimedia Connectivity

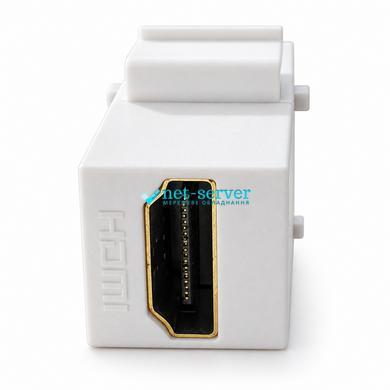

Net-Server NS-KJ-HDMI20-WH is an HDMI 2.0 pass-through Keystone module with two female connectors. It is designed to join HDMI cables and provide an accessible connection point in wall outlets, multimedia panels, and compatible Keystone patch panels. Its white housing matches light-coloured wall plates and panels.

The module provides a convenient HDMI connection near a television, monitor, projector, or desk. The installed cable connects to the rear socket, while the equipment cable plugs into the front. This arrangement simplifies cable management and helps create a tidy workspace or multimedia setup.

Key Benefits

• Keystone mounting: clips into compatible wall outlets, adapters, and panels.
• Two female HDMI sockets: connects ready-made cables without soldering, crimping, or dismantling connectors.
• Audio and video transmission: provides an HDMI connection between a signal source and multimedia equipment.
• Passive design: requires no separate power supply.

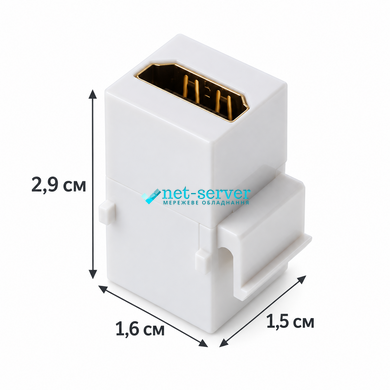

• Compact housing: measures 29 × 16 × 15 mm for installation where space is limited.
• Easy maintenance: the external cable can be disconnected or replaced without removing the installed cable run.

Applications

The module is suitable for home theatres, offices, meeting rooms, classrooms, conference halls, and hotel rooms. It can be used to create HDMI wall outlets for connecting computers, laptops, media players, game consoles, and other HDMI-equipped devices.

Technical Specifications

Installation Notes

Before installation, check that the Keystone opening is compatible and that there is enough space behind the panel for the HDMI connector and cable bend. The module joins two cables but does not amplify the signal. Supported resolution, refresh rate, and connection stability depend on the equipment, cable quality, and total cable run length.

Frequently Asked Questions

Does the cable need to be soldered or crimped?

No. Both sides of the module have female sockets for ready-made HDMI cables with Type A male connectors.

Can the module be installed in a wall outlet?

Yes, provided that the wall outlet or adapter has a compatible Keystone opening and sufficient installation depth.

Is an external power supply required?

No. This is a passive pass-through module that operates without a separate power supply.

Is a wall plate included?

No. The package contains one HDMI Keystone module. Wall plates, panels, and cables are sold separately.
