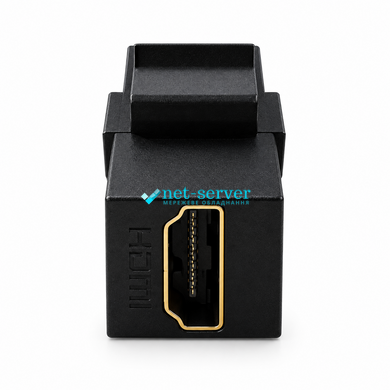

Net-Server NS-KJ-HDMI20-BK HDMI 2.0 Keystone Coupler — Neat Multimedia Connectivity
Net-Server NS-KJ-HDMI20-BK is an HDMI 2.0 pass-through module in the Keystone format with female-to-female connectors. It is designed to join two HDMI cables and provide a connection point in wall outlets, multimedia panels, and compatible patch panels. The black housing matches dark wall plates, panels, and equipment.
The module provides a convenient HDMI port near a television, monitor, projector, or desk. The permanently installed cable connects to the rear socket, while the equipment cable plugs into the front. This arrangement keeps cables organised and makes connecting or replacing devices easier.
Key Benefits
- Keystone mounting: the module clips into a compatible opening in a wall outlet or panel.
- Solder-free connection: both sockets accept ready-made HDMI cables with Type A male connectors.
- Audio and video transmission: provides a pass-through HDMI connection for multimedia systems.
- No additional power required: the passive design requires no power supply or configuration.
- Easy maintenance: the external cable can be replaced without removing the permanently installed cable run.
- Black plastic housing: a practical finish for dark wall plates and patch panels.
Applications
The Net-Server HDMI Keystone module is suitable for home theatres, offices, meeting rooms, classrooms, conference halls, and hotel rooms. It can be used to create connection points for computers, laptops, media players, game consoles, televisions, and projectors equipped with HDMI ports.
Technical Specifications
| Brand | Net-Server |
| Model | NS-KJ-HDMI20-BK |
| Product type | HDMI pass-through coupler module |
| Mounting format | Keystone |
| Interface | HDMI 2.0 |
| Connector type | HDMI Type A, female to female |
| Number of connectors | 2 |
| Design | Passive |
| Housing material | Plastic |
| Colour | Black |
| Cable connection | Plug-in, without soldering or crimping |
| Additional power supply | Not required |
Installation and Operation
Before installation, check that the Keystone opening is compatible and allow sufficient space behind the panel for the HDMI plug and cable bend. Once the module is installed, connect the HDMI cables to both sides, avoiding cable tension and excessive strain on the connectors.
The module joins cables but does not amplify or regenerate the signal. Supported resolution, refresh rate, and transmission stability depend on the capabilities of the connected devices, cable quality, and total cable run length.
Frequently Asked Questions
What is an HDMI Keystone module used for?
It provides a convenient HDMI port in a wall outlet or panel, connecting a permanently installed cable to an equipment cable.
Does the cable need to be crimped or soldered?
No. The module has two HDMI Type A female sockets that accept ready-made cables with matching male connectors.
Will the module fit any wall outlet?
It fits wall outlets and adapters with a compatible Keystone opening. Installation depth and the space required for the cable connection must also be considered.
Does the module work as an HDMI signal booster?
No. This is a passive coupler module. Cable runs that require signal amplification or transmission over a substantial distance need an appropriate active solution.
