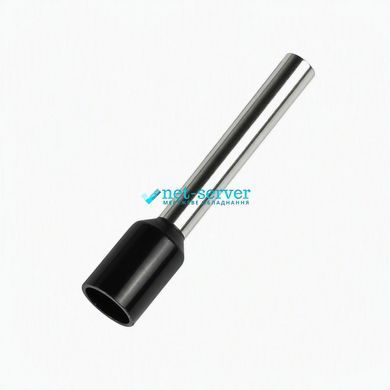

E2518Bk type E insulated wire ferrule is designed for terminating 2.5 mm² stranded conductors before connection to terminals and electrical equipment. Sleeve length: 18 mm; collar color: black; pack: 100 pcs.

When correctly crimped, the ferrule gathers individual strands into a compact termination, simplifies wiring and helps prevent strand spreading inside the terminal.

Applications

• distribution boards and control panels
• automation cabinets
• screw and spring terminals
• power supplies and terminal blocks
• internal equipment wiring

Advantages

• for 2.5 mm² conductors
• 18 mm sleeve
• black insulating collar
• neat termination of stranded conductors
• 100 pcs. per pack

Main specifications

Installation notes

Strip the conductor to the working length, insert it fully into the sleeve and crimp it with a tool and die matched to the conductor size. An incorrect die can reduce mechanical retention and connection quality.

Frequently asked questions

1. What conductor size is E2518Bk for?
2.5 mm² conductors.

2. What is the sleeve length?
18 mm.

3. How many ferrules are supplied?
100 pcs.
