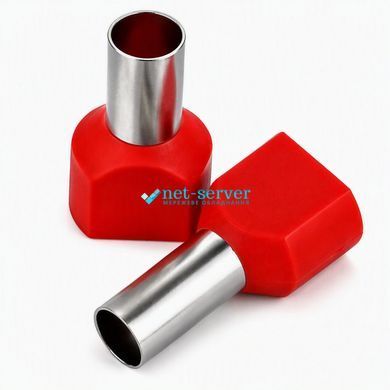

TE10-14Rd type TE twin insulated ferrule is designed to terminate two stranded conductors of 10.0 mm² each and connect them to one terminal point. Sleeve length: 14 mm; color: red; pack: 100 pcs.
The twin-entry TE design combines two wires in one ferrule and creates a common compact termination.
Applications
- distribution boards
- automation cabinets
- control and signaling circuits
- two-wire connection to one terminal
- cable harness assembly
Advantages
- two 10.0 mm² conductors
- 14 mm sleeve
- red collar
- compact twin-wire termination
- 100 pcs. per pack
Main specifications
| Product type | Twin insulated wire ferrule |
| Type | TE |
| Number of conductors | 2 |
| Size per conductor | 10.0 mm² |
| Sleeve length | 14 mm |
| Color | red |
| Quantity | 100 pcs. |
| Part number | TE10-14Rd |
Installation notes
Strip both conductors evenly, insert them fully into the twin entry and crimp with a die intended for twin ferrules of the required combined conductor size.
Frequently asked questions
1. How many wires does TE10-14Rd terminate?
Two wires.
2. What is the size of each conductor?
10.0 mm².
3. How many pieces are supplied?
100 pcs.
