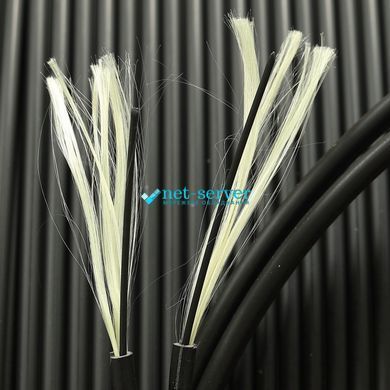

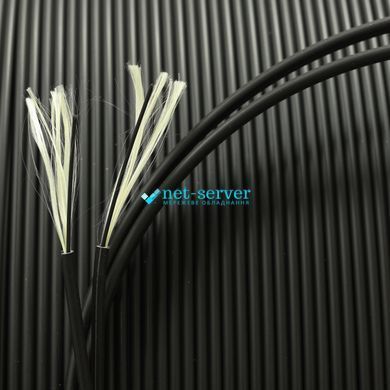

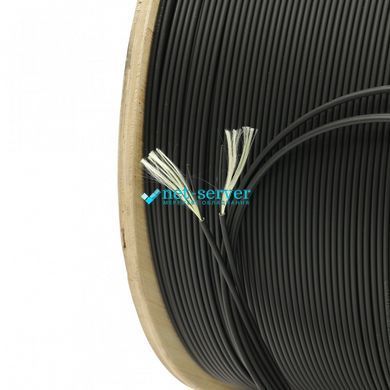

Fiber Optic Cable for Patch Cords OM3, 2 Fibers 50/125 µm, LSZH, 2.9 mm, Black, J-V(ZN)H-2OM3-BK

J-V(ZN)H-2OM3-BK is a two-fiber indoor fiber optic cable of the Zipcord Tight Buffer type, designed for manufacturing fiber optic patch cords, connection cables, and internal fiber optic links.

The cable contains 2 multimode OM3 50/125 µm fibers and features a duplex construction. Thanks to its compact dimensions, low weight, and excellent flexibility, it is convenient for installation in telecommunications cabinets, server rooms, offices, distribution areas, and other indoor environments.

The cable can be used for connections between fiber distribution panels, active equipment, terminal devices, and workstations, as well as for the production of finished fiber optic patch cords.

OM3 50/125 µm Fiber

The cable uses OM3 multimode optical fiber with a 50 µm core diameter and a 125 µm cladding diameter.

OM3 fiber is optimized for use with laser light sources and is widely used in high-speed local area networks, data centers, server rooms, and telecommunications infrastructure.

The cable is suitable for short- and medium-distance optical connections where high bandwidth, stable signal transmission, and compact installation are important.

Tight Buffer Construction

Each fiber has a 900 µm tight buffer, which simplifies connector termination and patch cord manufacturing.

The Tight Buffer design provides:

• easy fiber stripping;
• additional mechanical protection;
• simple connector termination;
• no need for additional breakout kits;
• convenient installation in confined spaces.

Fully Dielectric Construction

The cable contains no metallic components and features a fully dielectric construction, so grounding is not required.

Aramid yarn is used as the tensile strength member, providing mechanical protection and helping protect the optical fibers against damage during installation and operation.

LSZH / FRNC Jacket

The outer jacket is made of LSZH / FRNC material.

This type of jacket:

• helps limit flame propagation;
• provides low smoke emission;
• contains no halogens;
• releases fewer corrosive gases during combustion;
• is suitable for indoor installation;
• is well suited for server rooms, data centers, offices, and other locations with increased fire-safety requirements.

Advantages of J-V(ZN)H-2OM3-BK

• 2 multimode OM3 50/125 µm fibers;
• Duplex Zipcord construction;
• 900 µm tight buffer;
• fully dielectric design;
• aramid strength members;
• LSZH / FRNC jacket;
• compact dimensions;
• small bend radius;
• convenient for patch cord manufacturing;
• suitable for indoor installation;
• ideal for server rooms, data centers, and telecommunications cabinets;
• easy to install in confined spaces.

Technical Specifications

J-V(ZN)H-2OM3-BK is a practical solution for manufacturing fiber optic patch cords and indoor multimode connections where compact size, flexibility, fire safety, and easy installation are important.
