Network Patch Cord S/STP Cat 6A Cablexpert PP6A-LSZHCU-Y-1M, 1 m, black, RJ45-RJ45, LSZH, Copper

Cablexpert PP6A-LSZHCU-Y-1M is a high-quality shielded Cat 6A network patch cord designed for high-speed Ethernet networks and structured cabling systems. The cable is equipped with two molded RJ45-RJ45 connectors featuring 50-micron gold-plated contacts (50u), ensuring reliable connectivity, low signal loss, and long-term durability.

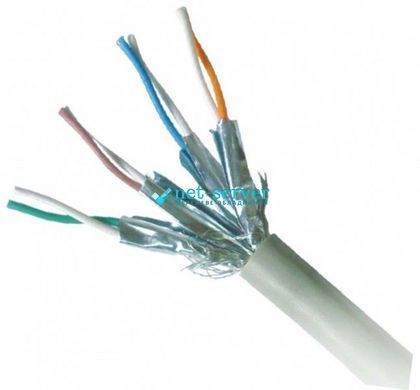

The patch cord is manufactured using 100% copper conductors (Cu) and an advanced S/STP shielding structure, where each twisted pair is individually shielded with foil while the entire cable is protected by an overall braided shield. This design provides excellent protection against electromagnetic interference (EMI) and crosstalk, making it ideal for demanding networking environments.

The outer jacket is made from LSZH (Low Smoke Zero Halogen) material, which emits minimal smoke and no harmful halogen gases in the event of fire. This makes the cable suitable for use in data centers, server rooms, offices, and public buildings where fire safety is important.

Main Advantages

• Cat 6A Performance: supports data transmission speeds up to 10 Gbps.
• 100% Copper Conductors: ensures stable signal quality and minimal attenuation.
• S/STP Shielding: overall braided shield plus individually shielded pairs for maximum interference protection.
• LSZH Jacket: low smoke and halogen-free construction for improved safety.
• 50u Gold-Plated Contacts: reliable connections and corrosion resistance.
• Molded Connectors: enhanced durability and strain relief.
• Compact 1 m Length: ideal for rack and cabinet patching applications.
• black Color: simplifies cable identification and network organization.

Applications

The Cablexpert PP6A-LSZHCU-Y-1M patch cord is designed for professional networking installations and structured cabling systems.

• Patch panels;
• Network switches;
• Routers;
• Servers;
• Network outlets;
• IP surveillance systems;
• 10 Gigabit Ethernet equipment;
• Data centers and server racks.

Technical Specifications

• Model: Cablexpert PP6A-LSZHCU-Y-1M
• Type: Network Patch Cord
• Category: Cat 6A
• Length: 1 m
• Color: black
• Connector Type: RJ45 - RJ45
• Connector Design: Molded
• Contact Plating: 50u Gold-Plated
• Conductor Material: Copper (Cu)
• Wire Gauge: AWG 27 (7×0.135 mm)
• Shielding Type: S/STP
• Jacket Material: LSZH
• Outer Diameter: 5.8 mm
• Operating Frequency: Up to 250 MHz
• Standard Compliance: ANSI/TIA/EIA-568B

Frequently Asked Questions

What is the difference between S/STP and UTP?

S/STP cables provide superior protection against electromagnetic interference. Each pair is individually foil-shielded, and the entire cable is covered with an additional braided shield, offering significantly better performance than unshielded UTP cables.

Why choose a 1 m patch cord?

Short patch cords are ideal for neat and organized connections inside server racks, network cabinets, and patch panel installations, reducing cable clutter.

Does this patch cord support 10 Gigabit Ethernet?

Yes. Cat 6A cabling is designed to support data transfer speeds of up to 10 Gbps when used with compatible networking equipment.
