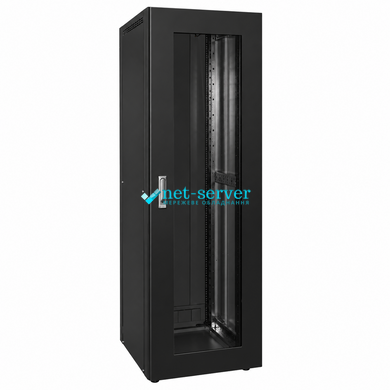

IP 42U 800x1000 mm server cabinet С-42U-08-10-1С-BK is a 19-inch telecommunications cabinet designed for organized installation and protection of network, server, fiber-optic and other telecom equipment. The black cabinet features a floor-standing design and glass doors.

It is suitable for switches, routers, patch panels, fiber distribution panels, PDUs, cable managers, rack shelves, CCTV recorders and other compatible 19-inch equipment. The 42U rack capacity helps organize multiple devices in one telecommunications node.

Applications

The cabinet can be used for network and telecommunications infrastructure in offices, server rooms, technical rooms, retail facilities, educational buildings, CCTV systems and other installations where 19-inch equipment needs to be organized and protected.

Suitable for:

• network switches and routers;
• RJ-45 patch panels and fiber distribution panels;
• PDU power distribution units;
• cable managers;
• 19-inch rack shelves;
• CCTV recorders and surveillance equipment;
• other 19-inch equipment compatible with the cabinet dimensions and load limits.

The floor-standing design is convenient for server rooms and telecom nodes that require more installed equipment.

Advantages

• 19-inch equipment standard;
• 42U rack capacity;
• 800 mm cabinet width;
• 1000 mm cabinet depth;
• floor-standing installation;
• glass doors provide convenient visual monitoring of installed equipment;
• black cabinet finish;
• compatible with rack shelves, PDUs, cable managers and ventilation accessories;
• convenient access for installation and maintenance.

Main specifications

Design features

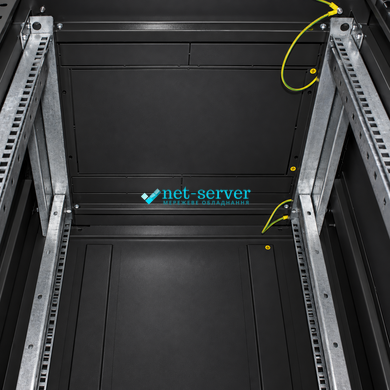

The cabinet is designed for standard 19-inch rack equipment installed in rack units. Its 1000 mm cabinet depth provides space for compatible network and telecom devices and cable organization. Before installing servers, UPS units or other deep equipment, check the actual mounting depth and allow clearance for connectors, cables and airflow.

Glass doors allow visual equipment monitoring without opening the cabinet. Additional airflow or forced ventilation should be considered for active equipment with higher heat output.

С-42U-08-10-1С-BK is a practical solution for professional organization of 19-inch network and telecommunications equipment, protection of network nodes and structured cable management.

Frequently asked questions

1. Is the cabinet compatible with standard 19-inch equipment?

Yes. It is designed for standard 19-inch rack equipment with a total rack capacity of up to 42U.

2. What does 42U mean?

U is the standard rack unit used to measure the height of server and telecommunications equipment. This model provides 42 rack units.

3. What do the 800x1000 mm dimensions mean?

800 mm is the cabinet width and 1000 mm is its overall depth. Usable internal mounting depth may differ, so deep equipment should be checked before installation.

4. Can a server or UPS be installed?

Yes, provided its dimensions, mounting depth, mounting method and weight are compatible with the cabinet, rails or selected shelf.

5. Can non-rack-mount equipment be installed?

Yes. A compatible 19-inch rack shelf can be used, selected according to the required depth and load capacity.

6. Are cooling fans required?

Natural airflow may be sufficient for low-heat equipment. A ventilation unit should be considered for active equipment with higher heat output.

7. Where can this cabinet be used?

Offices, server rooms, technical rooms, retail facilities, telecom nodes, CCTV installations and other sites using 19-inch equipment.

8. Can the cabinet be installed outdoors?

Outdoor installation is appropriate only for models specifically designed and rated by the manufacturer for outdoor use. A standard server cabinet should be installed in a dry indoor environment.
