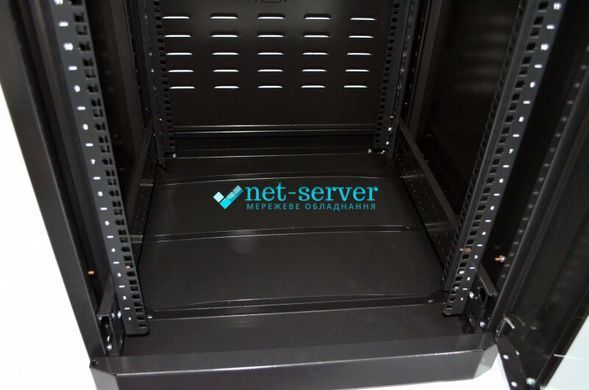

19″ Floor Standing Server Rack, 28U, 1355×610×675 mm (H×W×D), Knock-Down, Black — UA-MGSE2866MB

UA-MGSE2866MB is a 19″ floor standing server rack with a height of 28U, designed for hosting networking equipment, servers, UPS units, and patching gear in offices and server rooms. It features a tempered glass front door and a rear metal door with ventilation louvers, comes with two pairs of 19″ rails, and supports loads up to 500 kg. The 675 mm depth is optimal for most standard devices, leaving space for cabling and airflow.

Advantages

• Capacity: 28U for servers, switches, patch panels, and UPS units.
• Optimal depth: 675 mm for standard telecom equipment.
• Durability: supports up to 500 kg, rails with U-marking.
• Quick assembly: knock-down design in 3–4 flat packs, symmetrical parts, 30–40 min one-person assembly.
• Flexibility: adjustable rail depth for various equipment sizes.
• Cooling: supports fan installation at the top or bottom.
• Protection & design: powder-coated, IP20, black RAL 9005.

Specifications

• Model: UA-MGSE2866MB
• Type: 19″ floor standing telecom rack
• Height: 28U
• Dimensions (H×W×D): 1355×610×675 mm

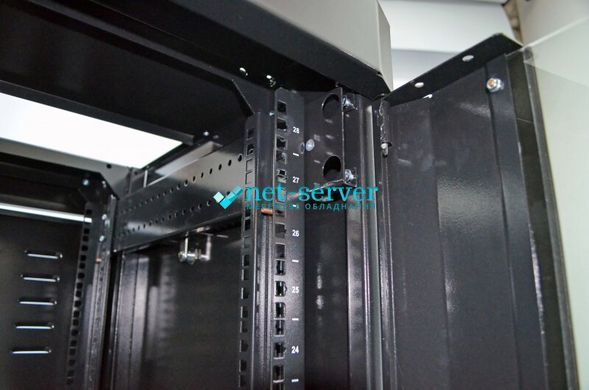

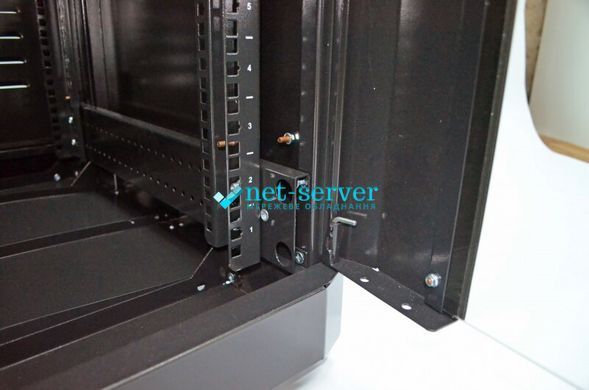

• Rails: 2 pairs of 19″ rails with U-marking; depth-adjustable
• Front door: tempered glass, lockable handle
• Rear door: metal with ventilation louvers, lockable
• Side panels: removable, optional locks
• Max load: up to 500 kg
• Protection rating: IP20
• Color: Black, RAL 9005
• Material: steel 1–2 mm
• Cooling (optional): 3×120 mm (SUNON) fan unit
• Feet: adjustable leveling feet included, optional casters
• Weight: ~74 kg
• Warranty: 12 months
• Certificate: № 1O094.008721-21

Recommended Accessories

• 🔄 Casters — for easy rack mobility.
• 🪶 Brush cable entry — dust protection and neat cable management.
• 💨 Fan unit — active cooling for equipment.
• 🔌 19″ PDU — to power servers and networking devices.
• 📦 Shelves (fixed, sliding, cantilever) — for additional equipment placement.
• 🖧 Patch panels — for structured cabling systems.
• 🪢 Cable organizers — for neat and safe cable routing.

Installation Tips

• Plan cable routing and organizer placement before equipment installation.
• Leave clearance between rails and doors for connector access.
• For high-heat equipment, use two fan units (top and bottom).
• Add casters for mobility if frequent relocation is required.
